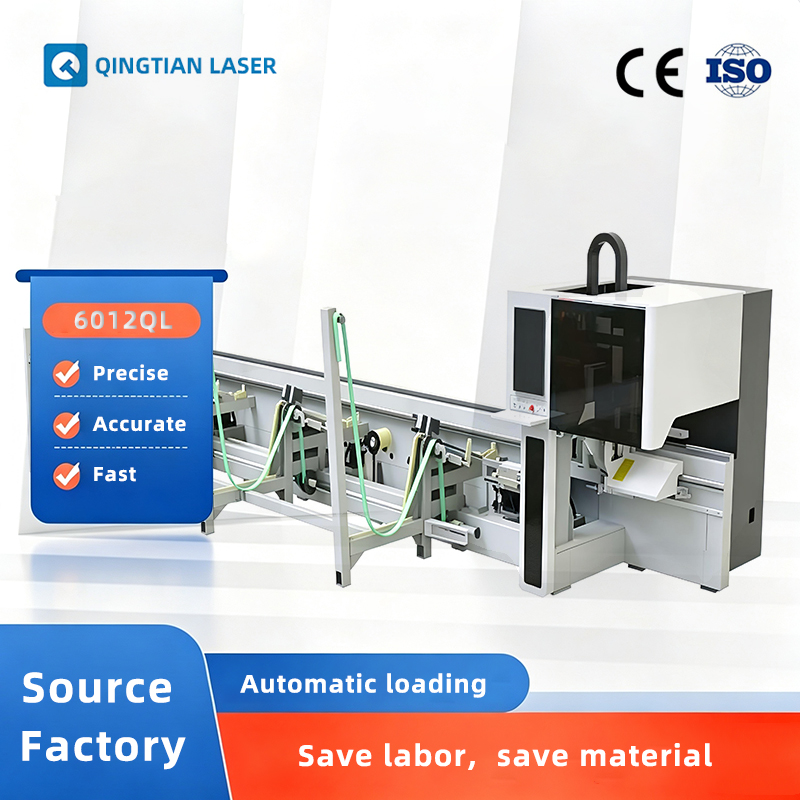

Fully Automatic Loading Heavy-Duty Laser Tube Cutting Machine (240mm)

Overview

The Fully Automatic Loading Heavy-Duty Laser Pipe Cutting Machine (240mm) is a four-axis fiber laser pipe cutting device from the Qingtian brand, mainly aimed at large-batch pipe manufacturers and steel structure processing enterprises. The processing range of the equipment is 240mm×240mm, the cutting thickness is 0-20mm, and it can handle metal pipes such as steel, aluminum, stainless steel, iron, and galvanized. It comes standard with 3000W laser power, with an optional 6000W high-power version, and a cutting speed of 200-1500mm/min. The whole machine adopts fully automatic one-button operation; combined with the automatic loading mechanism, the cutting process requires no continuous manual intervention, and workers only need to monitor periodically, making it suitable for continuous production rhythms.

Key Selling Points

First, automatic loading and automatic cutting are linked, reducing manual loading and unloading steps, and making it suitable for night shifts or unattended scenarios. Second, the cutting thickness covers 0-20mm, so thick-walled pipes can also be processed, and the cutting speed is 200-1500mm/min, balancing efficiency and cut quality. Third, the four-axis structure combined with the fiber laser can process various pipe types such as round pipes, square pipes, and rectangular pipes. Fourth, the power can be selected as 3000W or 6000W, and customization of laser power, configuration, and pipe processing length is supported, making it convenient to match according to the project. Fifth, the guide rail uses the Shangyin brand, the cooling method is liquid cooling, and the core component configuration is clear, so it can be checked item by item during procurement.

Applications

This equipment is suitable for production scenarios with large pipe usage and relatively concentrated cutting specifications. For example, steel structure processing enterprises cutting square pipes and rectangular pipes in batches, pipe manufacturers continuously cutting stainless steel pipes and galvanized pipes, and cutting pipe fittings with a thickness close to 20mm in thick-walled pipe processing. For workshops that want to reduce manual loading and achieve unattended night-shift production, the automatic loading function can directly reduce the number of operators. If the production line needs to switch between different pipe diameters or lengths, the configuration can also be adjusted through customization options.

Specifications

The equipment adopts a four-axis structure and a fiber laser; the laser brand is Chuangxin Laser, the guide rail brand is Shangyin, the cooling method is liquid cooling, and the operation mode is continuous wave. The processing range is 240mm×240mm, the cutting thickness is 0-20mm, and the cutting speed is 200-1500mm/min. The laser power comes standard with 3000W, with an optional 6000W. Applicable materials include steel, aluminum, metal, stainless steel, iron, and galvanized. The minimum order quantity is 1 set, and the price is marked as $44,500 / set. For packaging instructions, delivery time, and certification and qualification information, please contact us to confirm.

Purchase & Delivery

The minimum order quantity for this product is 1 set, and the price is marked as $44,500 / set. Customization of laser power, configuration, and pipe processing length is supported, and the specific selection needs to be confirmed based on pipe material, wall thickness, commonly used pipe diameter, and production rhythm. There is currently no fixed information on packaging instructions and delivery time. You are welcome to provide your pipe specifications, quantity, and receiving region, and we will assist in confirming the packaging plan and delivery arrangements. For certification and qualification information, please also contact us to confirm, and we will provide corresponding explanations according to project requirements.

Service & Support

We provide a one-year free warranty, and include installation, commissioning, and operation training. After the equipment arrives at the factory, we will assist in completing installation and commissioning, and train the operators to help the production line quickly enter a stable production state. Regarding the laser service life and maintenance costs, there will be differences under different power levels and usage intensities; please contact us to confirm specific maintenance recommendations and spare parts information.
