Products
Quickly learn about the mini laser equipment series and core advantages to find the right cutting solution for you.
QT-6010XQ Portable Pneumatic Chuck Small Laser Tube Cutting Machine
This device integrates a pneumatic chuck and a servo drive system, with its core capability being four-axis simultaneous control, enabling it to handle complex processes such as intersecting line cutting that are difficult for traditional equipment to complete. The machine body design emphasizes portability, with a total weight of approximately 430KG and a three-section structure that facilitates transportation and on-site deployment. It is suitable for processing square and round tubes with diameters ranging from 19 to 100 millimeters, with an effective length of up to 6 meters and a cutting precision of ±0.5 millimeters, meeting the needs of most precision tube components. The equipment offers comprehensive functionality, with a single machine capable of covering multiple processes such as cutting, hole punching, slotting, and engraving.
Learn More
QT-6012BL-3000W semi-automatic loading laser tube cutting machine
This 6012BL-3000W semi-automatic laser tube cutting machine centers on the combination of its chain-type automatic feeding system and a 3000W fiber laser. The operator only needs to place batches of tubes onto the feeding rack, and the machine can automatically complete the feeding, clamping, and cutting processes, enabling continuous operation. It adopts an L-shaped bed and a chuck side-hanging structural design, providing a stable foundation for processing long tubes and allowing the front chuck to move for avoidance, thereby controlling the tail material length to only 50mm and reducing raw material waste. The equipment is driven by a mature Bochu control system, featuring comprehensive functions, with a cutting tube diameter range covering 10 to 120 millimeters and a maximum processing length of up to 6.5 meters.
Learn More
QT-6012MYS Upgraded Integrated Square-Round Laser Tube Cutting Machine
This is an upgraded four-axis linkage laser tube cutting machine, suitable for cutting round and square tubes with diameters from 15mm to 120mm and wall thicknesses not exceeding 3mm. The equipment is equipped with a Raycus laser and Hechuang servo motors, combined with front and rear pneumatic chucks, ensuring the stability and clamping efficiency of the cutting process. Its most notable feature is the standard front chuck overtravel function, which allows the cutting head to work closer to the tube end, controlling the tail material to around 50mm. The entire machine adopts a two-section detachable structure, facilitating transportation and adapting to more workshop spaces, thereby lowering the installation threshold.
Learn More
QT-6010DM Integrated Square-Round Portable Plasma Pipe Cutting Machine
This pipe cutting machine integrates the cutting functions for round and square pipes into a single portable body. It employs a two-axis coordinated system, combined with a built-in graphics library, allowing complex intersecting line cutting and hole-making paths to be set up without requiring professional programming knowledge. The main body of the equipment consists of three separable sections, each approximately 2.2 meters long, which can be transported by ordinary vehicles and quickly assembled on-site. The standard-equipped European and American Dragon 100A plasma power source provides stable cutting power. The overall design strikes a balance between portability, ease of use, and processing efficiency, making it suitable for end-users with mobile processing needs.
Learn More
QT-6012MY Square-Round Integrated Laser Tube Cutting Machine
The 6012MY integrated square and round laser tube cutting machine, provided by Maidi, adopts a four-axis linkage control system, solving the problem of traditional equipment requiring separate processing for round and square tubes. A single machine can complete the cutting operations for various tube types. The core components of the equipment include a Raycus laser and a Hechuan servo motor, ensuring the stability and precision of the cutting process. The front and rear pneumatic chucks design allows for very rapid clamping and releasing, improving loading and unloading efficiency. The machine body features a two-section detachable structure, making it convenient to transport into the workshop or perform secondary layout. Based on your tube length requirements, we can also provide customized solutions.
Learn More
QT-6012QL-3000W fully automatic loading laser tube cutting machine
This is an automated equipment designed for large-scale pipe processing. It combines high-power fiber laser cutting technology with an automated loading system. Operators only need to monitor it periodically, and the equipment can automatically complete the entire process from pipe loading to cutting and shaping. The equipment can handle various metal pipes with diameters from 10 to 120 millimeters and lengths within 6.5 meters, offering high cutting precision and stable operation. For enterprises with heavy production tasks, those seeking to upgrade their production lines, or those facing labor cost pressures, this equipment is a reliable solution.
Learn More
QT-6012YQ High-Speed Laser Tube Cutting Machine
This is a high-speed laser tube cutting machine launched by the Maidi brand, featuring a core configuration that includes a 1500W fiber laser, front and rear pneumatic chucks, and a high-strength steel structure bed. The equipment is primarily used for processing metal tubes with a diameter or side length between 10 millimeters and 120 millimeters, and a length not exceeding 6 meters. Its design focuses on solving the issues of speed and stability in batch tube processing: high-speed Y-axis movement and chuck rotation can shorten the single cutting cycle, while the robust bed helps maintain precision during long-term operation. For users concerned about material costs, the machine's minimum tail length of 40 millimeters is an important feature.
Learn More

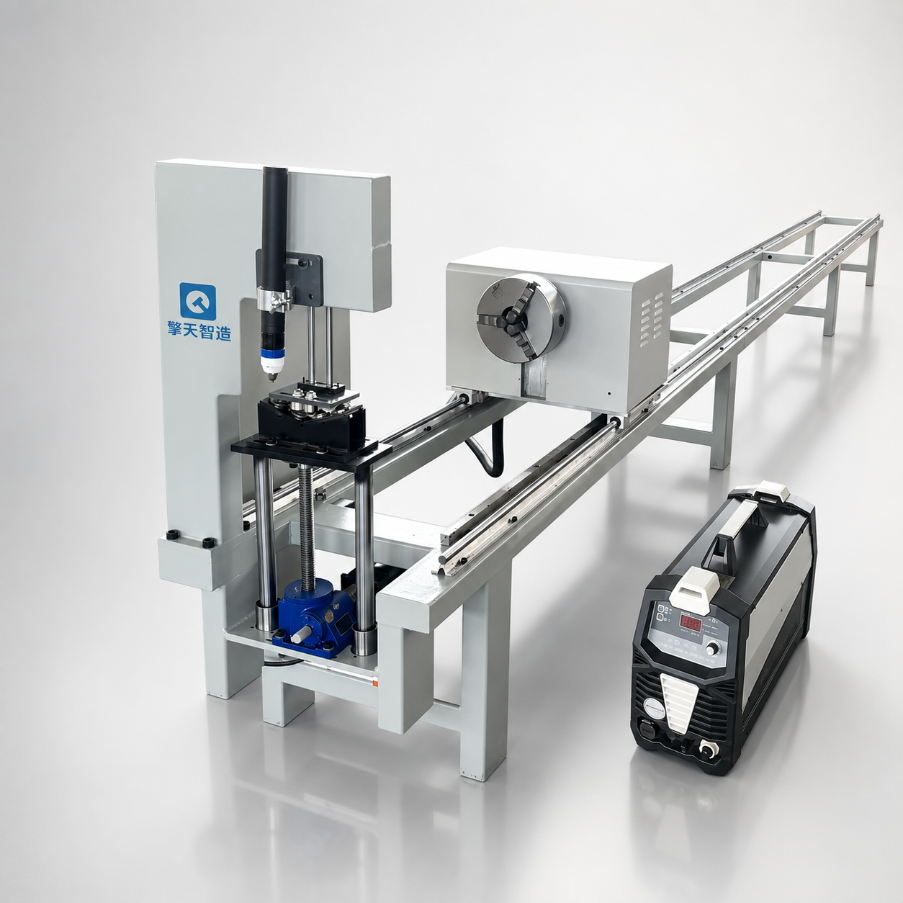

QT-6022DM Portable 219 Single Round Tube Plasma Pipe Cutting Machine
The 6022DM Portable 219 Single Round Tube Plasma Pipe Cutting Machine is a mobile cutting equipment focused on round tube processing. Its core value lies in bringing efficient plasma cutting capabilities to mobile work scenarios such as construction sites and pipeline laying sites. The equipment is designed for metal round tubes with diameters ranging from Φ25 to 219mm, with a maximum cutting thickness of 6mm, and achieves intersecting line cutting and precise hole opening through a two-axis linkage system. The machine body is divided into three sections, which can be disassembled for transportation and reassembled on-site, greatly enhancing the equipment's mobility. For the on-site pipe processing needs frequently encountered in steel structure engineering, pipeline installation, and factory renovation, this equipment provides a solution that eliminates the need to transport the pipes back to the workshop.
Learn More
QT-6022M Portable 219 Single-Tube Laser Tube Cutting Machine
The Maidi 6022M portable laser pipe cutting machine utilizes a fiber laser and servo drive system, enabling precise cutting of round pipes with diameters ranging from Φ25 to 219mm, with a maximum cutting thickness of 4mm. Unlike traditional fixed equipment, its body features a three-section detachable design, with a total weight of approximately 420KG, making it easy to transport and move, thus allowing high-precision laser cutting to flexibly serve on engineering sites or in manufacturing workshops with limited space. The equipment supports intersecting line cutting and hole punching, offers fast cutting speeds, requires no maintenance for the fiber laser, and has lower long-term operating costs.
Learn More
