Three-section folding portable pipe cutter

Product Overview

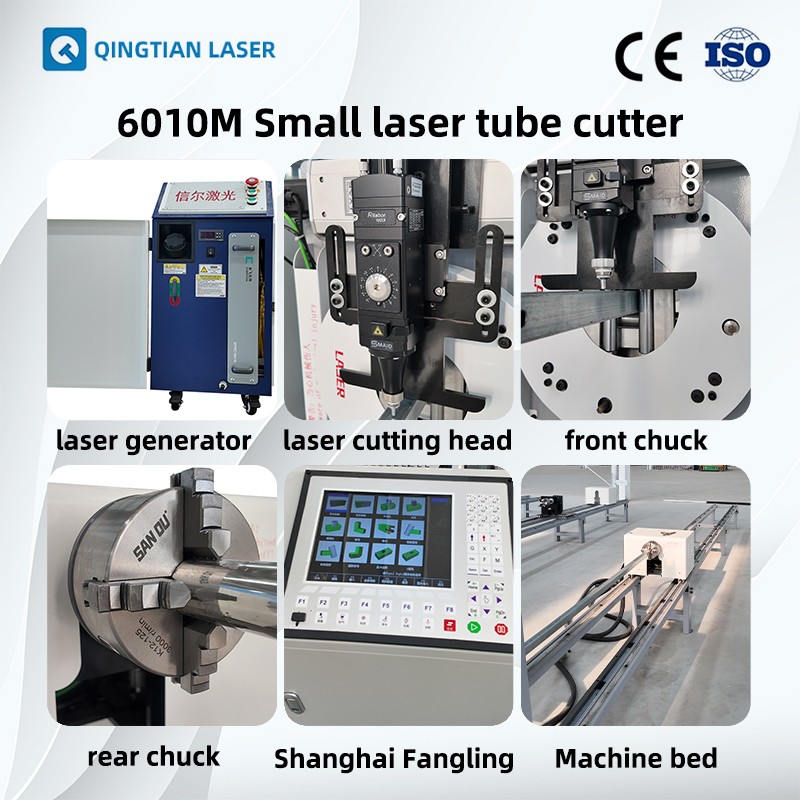

QT-6010MS three-section folding portable laser pipe cutting machine is a 3-axis fiber laser pipe cutting device launched by the Qingtian brand for mobile processing scenarios. The worktable can be folded into three sections, and during transport it can be disassembled into smaller units, making it suitable for users who need to move operations between different sites. The equipment is used for cutting and drilling pipes within 100×100mm, supports metal materials such as aluminum, stainless steel, and steel, has a pipe cutting length of 6 meters, a cutting thickness of 0-10mm, and a cutting speed of 500-10,000mm/min. The water cooling system supports continuous operation, and the heavy-duty chuck keeps the pipe stable during cutting. Optional 1500W, 2000W, and 3000W fiber lasers are available; the control system uses Shanghai Fangling, the guide rail is Shangyin, the laser head is Raytools, and the optical lens is Wavelength.

Key Selling Points

The three-section folding design is the most direct feature of this equipment. After the worktable is split into three sections, loading and relocation are easier than with an integral pipe cutting machine, making it suitable for mobile processing teams and rental users. The 3-axis structure with a heavy-duty chuck provides stable clamping when cutting pipes within 100×100mm, reducing the impact of pipe shaking on the cut. The water cooling system supports continuous operation, so processing sites can keep the machine running for long periods of cutting without frequently stopping to wait for cooling. Laser power is available in 1500W, 2000W, and 3000W options, and users can choose according to the common pipe wall thickness and cutting speed requirements. The equipment supports customization of laser power, configuration, and pipe processing length, with an MOQ of 1 set and a price of $4,999-5,599/set.

Applications

This pipe cutting machine is mainly aimed at mobile processing teams, small processing workshops, and equipment rental users. When mobile processing teams relocate between different construction sites, the folded worktable is convenient for loading, and it can be unfolded for operation upon arrival, making it suitable for pipe cutting at construction sites and temporary processing site operations. Small processing workshops take on metal pipe cutting orders, and the equipment occupies little space, so there is no need to set aside a large factory area specifically. Equipment rental users can rent the pipe cutting machine to short-term projects, and after folding it is easy to transport and store. Small-scale metal product production, such as pipe cutting for guardrails, shelves, display racks, etc., can also be completed with this equipment.

Specifications

Equipment model QT-6010MS, 3-axis structure, fiber laser, with optional laser power of 1500W, 2000W, and 3000W. Applicable materials include aluminum, stainless steel, steel, and metal, cutting thickness 0-10mm, cutting speed 500-10,000mm/min, pipe cutting length 6 meters. The cooling method is liquid cooling, the operation mode is continuous wave, and the product feature is servo motor. The control system brand is Shanghai Fangling, the guide rail brand is Shangyin, the laser head brand is Raytools, and the optical lens brand is Wavelength. Supports graphic formats such as STP, IGS, SAT, SAB, STEP, IFC, NC1, DWG, DXF, GEN, T2S, etc., with a working voltage of 220V/380V. Price $4,999-5,599/set, MOQ is 1 set. For packaging instructions, delivery time, and certification/qualification information, please contact us to confirm.

Purchasing & Delivery

The MOQ for this pipe cutting machine is 1 set, and the price ranges from $4,999-5,599/set, with the specific price determined by laser power and configuration selection. Laser power, configuration, and pipe processing length customization are supported. If you have specific pipe dimensions or processing requirements, please contact us to confirm the configuration and quotation. For packaging instructions and delivery information, please contact us to confirm, and we will assist in confirming the shipping arrangements based on your receiving address and order configuration.

Service & Support

We provide a one-year free warranty. During the warranty period, failures caused by the equipment's own quality problems can enjoy free repair service. After equipment delivery, we provide installation, commissioning, and operation training to help operators become familiar with equipment use and daily maintenance. If you encounter problems during model selection, use, or maintenance, please contact us, and we will assist in confirming a solution.
