Semi-Automatic Loading Heavy-Duty Tube Laser Cutting Machine (240mm)
Semi-automatic loading, cutting, and intersecting line processing for pipes up to 240mm
$41,500 / set
- Semi-automatic loading reduces manual labor
- L-shaped bed for heavy-duty stability
- 240 mm pipe diameter for wide coverage
- Built-in 3D drawing library
- Precision rack and pinion + servo motor + dual linear guides
Detailed Introduction

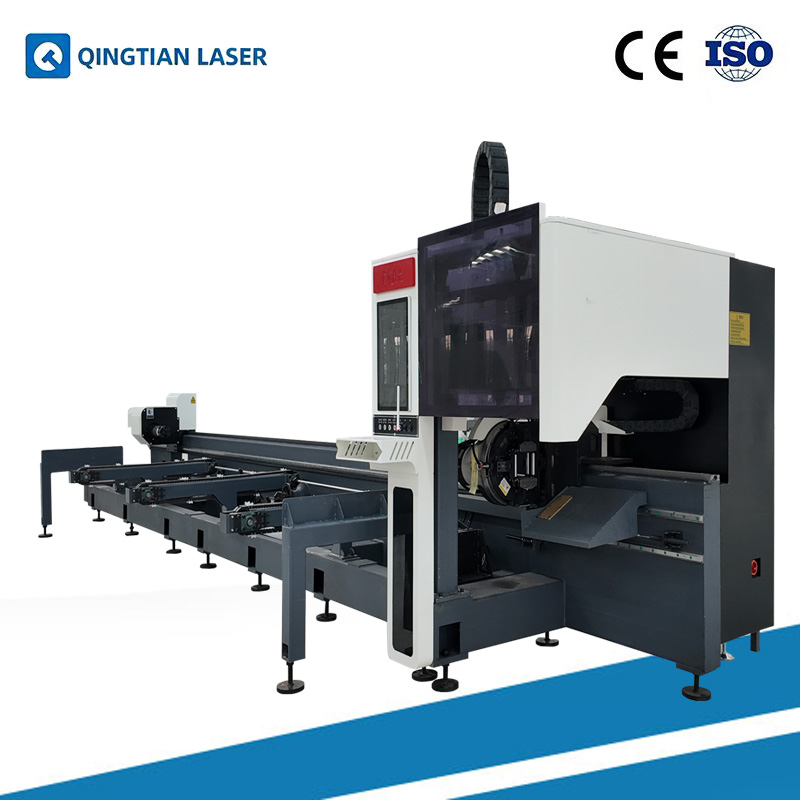

QT-6024ZQ is a semi-automatic loading heavy-duty laser tube cutting machine launched by Qingtian. Its tube processing range covers round tube diameters and square tube side lengths from 10mm to 240mm, and it can process tubes with a length not exceeding 6500mm. The equipment adopts an L-shaped bed structure, combined with precision rack and pinion, servo motors, and dual-side linear guide rails. The maximum Y-axis travel speed is 80m/min, the X and Y axis positioning accuracy is ±0.05mm, and the repeated positioning accuracy is ±0.03mm. It is equipped as standard with the Shanghai Bochu 3000 control system, which includes a built-in 3D drawing library for convenient on-site quick retrieval of graphics. Laser power can be selected as 3000W or 6000W, and it also supports customizing tube processing length and configuration according to project requirements. The overall machine power is 24KW, the power supply requirement is 380V/50Hz, and the main machine dimensions are 8500mm long, 1700mm wide, and 2500mm high. It is suitable for batch cutting scenarios such as steel structure pipe fittings and air and gas pipes.
- Semi-automatic loading structure reduces tube handling and manual intervention, suitable for batch cutting rhythm
- L-shaped bed design, combined with precision rack and pinion, servo motors, and dual-side linear guide rails, ensures stable heavy-load operation
- Tube processing range covers round tubes and square tubes from 10mm to 240mm, and can process tubes up to 6500mm long
- Optional 3000W or 6000W laser, supports customizing power and processing length according to project requirements
- Equipped as standard with the Shanghai Bochu 3000 control system, with a built-in 3D drawing library for convenient on-site retrieval of graphics
- X and Y axis positioning accuracy ±0.05mm, repeated positioning accuracy ±0.03mm, maximum Y-axis travel speed 80m/min
| Product Name | Semi-Automatic Loading Heavy-Duty Laser Tube Cutting Machine (240mm) |
| Product Categories | Laser Tube Cutting Machine |
| Tube Processing Dimensions | 10≤round tube diameter and square tube side length≤240, L≤6500; |
| X-Axis Travel | 350 mm |
| Y-Axis Travel | 6500 mm |
| Z-Axis Travel | 300 mm |
| X, Y axis positioning accuracy | ±0.05 mm |
| X, Y axis repeat positioning accuracy | ±0.03 mm |
Applications
- Batch cutting of pipe fittings in steel structure plants, processing square tube and round tube components
- Cutting of air gas pipes and pipe connectors by gas pipeline manufacturing enterprises
- Cutting of pipes within 240mm and intersecting line processing by large-batch pipe processing enterprises
- Tube cutting lines requiring semi-automatic loading to reduce manual handling
- For projects with customized requirements for pipe processing length, the configuration can be confirmed according to actual dimensions
Product Overview
The QT-6024ZQ semi-automatic loading heavy-duty laser pipe cutting machine is equipment launched by Qingtian for batch pipe cutting scenarios. The pipe processing range covers round pipe diameters and square pipe side lengths from 10mm to 240mm, and can process pipes with a length not exceeding 6500mm. The equipment adopts an L-shaped bed, combined with precision gear racks, servo motors, and double-sided linear guide rails, making it suitable for daily cutting use by steel structure, gas pipeline, and pipe processing enterprises. It comes standard with the Shanghai Bochu 3000 control system, which has a built-in drawing 3D graphic library for convenient on-site graphic retrieval. Laser power can be selected as 3000W or 6000W, and also supports customization of power, configuration, and pipe processing length according to project requirements.
Key Selling Points
The semi-automatic loading structure reduces pipe handling and manual intervention, making it suitable for batch cutting rhythm. The L-shaped bed design, combined with precision gear racks, servo motors, and double-sided linear guide rails, ensures stable heavy-load operation. The pipe processing range covers 10mm to 240mm round pipes and square pipes, and can process pipes up to 6500mm long. X, Y axis positioning accuracy is ±0.05mm, repeat positioning accuracy is ±0.03mm, and the Y axis maximum running speed is 80m/min. It comes standard with the Shanghai Bochu 3000 control system, which has a built-in drawing 3D graphic library. Optional 3000W or 6000W lasers are available, supporting customization of power and processing length according to project requirements.
Applications
Suitable for batch cutting of pipe fittings in steel structure factories, processing square tube and round tube components. Gas pipeline manufacturing enterprises can use it to cut air-gas pipes and pipeline connectors. Large-batch pipe processing enterprises can perform cutting and intersecting line processing of pipes within 240mm. Pipe cutting production lines that require semi-automatic loading to reduce manual handling can also choose it. For projects with customized requirements for pipe processing length, welcome to contact us to confirm the configuration.
Specifications
Pipe processing dimensions: 10≤round pipe diameter and square pipe side length≤240, L≤6500. X-axis travel 350mm, Y-axis travel 6500mm, Z-axis travel 300mm. X and Y axis positioning accuracy ±0.05mm, repeated positioning accuracy ±0.03mm. Acceleration 1.0G m/s², Y-axis maximum running speed 80m/min, chuck maximum speed 100r/min, tailing length 40-80mm. Main machine dimensions length 8500×width 1700×height 2500mm. Laser power 3000W, optional 6000W. Control system is Shanghai Bochu 3000. Whole machine power 24KW, power supply requirement 380V/50Hz. Cutting head collimating focal length 100mm. For packaging instructions, delivery time, and certification qualifications, please contact us to confirm.
Purchasing & Delivery
MOQ is 1 set, price $41,500/set. Supports customization of laser power, configuration, and pipe processing length. For packaging instructions and delivery time, please contact us to confirm. Welcome to provide pipe dimensions, quantity, and processing requirements, and we will assist in confirming the configuration and providing a quotation.
Service & Support
Provides one-year free warranty, as well as installation, commissioning, and operation training. For laser service life and maintenance costs, please contact us to confirm. If you have any questions about model selection or configuration, welcome to contact us.
FAQ
What size of pipes can QT-6024ZQ process?
The range of round pipe diameter and square pipe side length is 10mm to 240mm, and it can process pipes with a length not exceeding 6500mm.
Does it support customization of laser power and configuration?
Yes. Laser power can be selected as 3000W or 6000W, and it also supports customizing configuration and pipe processing length according to project requirements. For specific solutions, please contact us to confirm.
Do you provide installation, commissioning, and operation training?
We provide installation, commissioning, and operation training, and the entire machine comes with a one-year free warranty.
What are the delivery time and packaging of the equipment?
For delivery time and packaging details, please contact us to confirm, and we will provide specific information according to your project requirements.
What are the laser service life and maintenance costs?
For the laser service life and maintenance costs, please contact us to confirm, and we will provide the corresponding explanation according to the power and configuration you choose.
